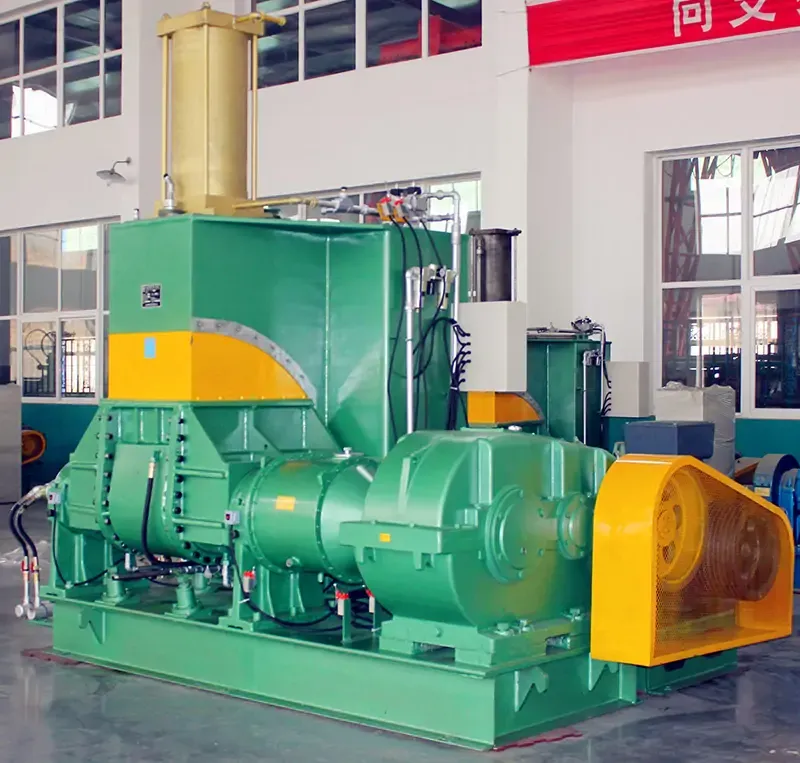

Rubber Internal Mixer Rubber Mixing Banbury Rubber Mixing Kneader 3L 5L 10L 12L 15L 20L 30L 35L 55L 75L 95L 110L Kneading Mixer Non Leaking Kneader
This kind of machine is jointing venture with TAIWAN factory and introduced the technology of similar machine in Japan. |
Parameters/Model | X(S)N-35/30 | X(S)N-55/30 | X(S)N-75/30 | X(S)N-110/30 | |
Total volume of internal mixer(L) | 35 | 55 | 75 | 110 | |
Speed of rear rotor(r/min) | 30/24.5 | 30/24.5 | 30/24.5 | 30/25 | |
Power(Kw) | 55 | 75 | 110 | 185 | |
Flip angle | 110° | 140° | 140° | 140° | |
Compressed air pressure(Kg/m2) | 8 | 8 | 8 | 8 | |
Overall dimensi (mm) | Length | 3240 | 3400 | 3860 | 4225 |
Width | 2079 | 2300 | 2300 | 1980 | |
Height | 2650 | 3100 | 3375 | 3180 | |
Weight(t) | 6.5 | 7.5 | 10 | 11 |
